OPTOMAN のウルトラファーストレーザーミラーは、超短パルスに対して高い反射率と高いLIDTを提供しつつ、時間的特性を保持するよう設計されています。指定波長範囲で群遅延分散（GDD）を最小化することで、分散による時間的広がりやパルス圧縮の悪影響に対抗します。
低GDDと高反射率の組合せは、精密に設計されたIBSコーティングで実現されており、機械的摩耗、湿度、温度変動に対して完全に耐性があります。そのため、どんな運用条件下でも信頼できるレーザー性能を確保します。Yb:YAG、Yb:KGW、Yb:KYW、Ybドープファイバ、Ti:Sapphireレーザーならびにそれらの2次・3次・4次高調波を含むシステムに適しています。用途には材料加工、分光、非線形光学、バイオメディカル技術が含まれます。
主な特長
| コーティングタイプ | Ion Beam Sputtering (IBS) |
|---|---|
| スペクトル範囲 | 193-5000 nm |
| 反射率 | >99.9% |
| サイズ | 3-420 mm |
| 平坦性 | up to <λ/20 |
| 表面品質 | up to 10-5 S-D over CA (MIL-PRF-13830B) |
| LIDT | > 0.7 J/cm², 800 nm, 47 fs, 100 Hz, p-pol > 1.35 J/cm², 800 nm, 47 fs, 100 Hz, s-pol |
| GDD | <20 fs² |
デザイン例

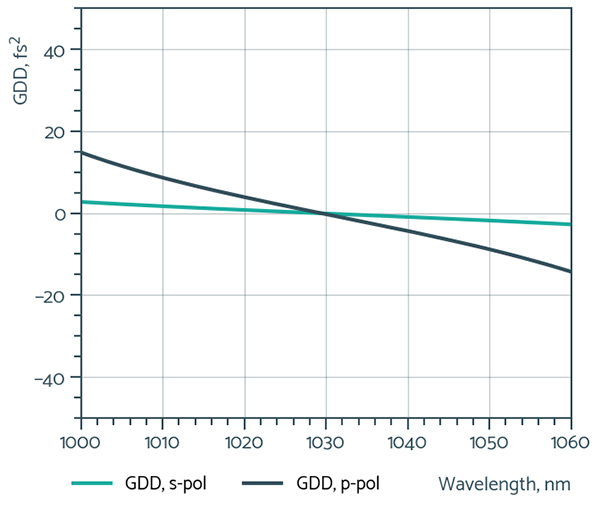

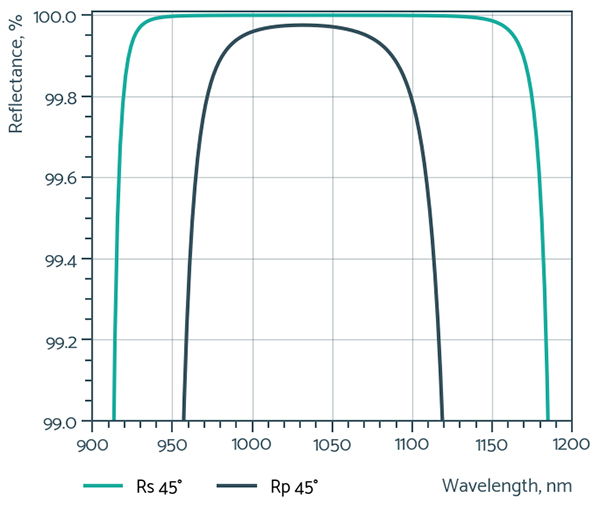

HRs>99.95% & HRp>99.9%@1010 - 1050 nm, AOI = 45°
GDD Rs<10 fs², GDD Rp<20 fs²
常時在庫・スタンダード製品
| 型番 | 直径 (mm) | 厚さ (mm) | コーティング | 入射角 (deg) | 平坦性 | 価格 (EUR) |
|---|---|---|---|---|---|---|
| PP-UVFS-12.7-6.35-ULLM3 | 12.7 | 6.35 | HRs>99.95% & HRp>99.9% @ 500-530 nm | 45 | <λ/8 over CA | 85 |
| PP-UVFS-25.4-6.35-ULLM5 (SCC) | 25.4 | 6.35 | HRs>99.95% & HRp>99.9% @ 1010-1050 nm | 45 | <λ/8 over CA | 125 |
| PP-UVFS-25.4-6.35-ULLM3 | 25.4 | 6.35 | HRs>99.95%& HRp>99.9% @ 500-530 nm | 45 | <λ/8 over CA | 110 |
| PP-UVFS-50.8-9.52-ULLM5 (no SCC) |
50.8 | 9.52 | HRs>99.95%& HRp>99.9% @ 1010-1050 nm | 45 | <λ/8 over 19mm area |
365 |
| PP-UVFS-25.4-6.35-ULLM9 | 25.4 | 6.35 | HR>99.9% @ 500-530 nm | 0 | <λ/8 over 17mm area |
130 |
| PP-UVFS-12.7-6.35-ULLM5 | 12.7 | 6.35 | HRs>99.95% & HRp>99.9% @ 1010-1050 nm | 45 | <λ/8 over 10mm area |
85 |
| PP-UVFS-50.8-9.52-ULLM3 (SCC) |
50.8 | 9.52 | HRs>99.95%& HRp>99.9% @ 500-530 nm | 45 | <λ/8 over CA | 340 |
| PP-UVFS-12.7-3.0-ULLM5 | 12.7 | 3.0 | HRs>99.95%& HRp>99.9% @ 1010 - 1050 nm | 45 | <λ/8 over 4mm area |
70 |
| PP-UVFS-12.7-6.35-ULLM8 | 12.7 | 6.35 | HR>99.9% @ 1010-1050 nm | 0 | <λ/8 over 10mm area |
90 |
| PP-UVFS-50.8-9.52-ULLM8 (SCC) |
50.8 | 9.52 | HR>99.9% @ 1010-1050 nm | 0 | <λ/8 over CA | 380 |
| PP-UVFS-25.4-6.35-ULLM8 | 25.4 | 6.35 | HR>99.9% @ 1010-1050 nm | 0 | <λ/8 over CA | 110 |
| PP-UVFS-50.8-9.52-ULLM5 (SCC) |
50.8 | 9.52 | HRs>99.95%& HRp>99.9% @ 1010-1050 nm | 45 | <λ/8 over CA | 460 |
| PP-UVFS-12.7-6.35-LLM121 | 12.7 | 6.35 | HRsp>99.9% @ 1030 nm & HRsp>99.9% @ 515 nm | 45 | <λ/8 over 10mm area |
100 |
| PP-UVFS-25.4- 6.35-LLM5SHL | 25.4 | 6.35 | HRs>99.95%& HRp>99.9% @ 1010- 1050 nm | 45 | <λ/10 over CA |
195 |
| PP-UVFS-12.7-6.35-LLM186 | 12.7 | 6.35 | HRsp>99.9% @ 515 nm | 45 | <λ/10 over 8mm area |
140 |
| PP-UVFS-50.8-9.52-ULLM5SHL (no SCC) | 50.8 | 9.52 | HRs>99.95%& HRp>99.9% @ 1010- 1050 nm | 45 | <λ/8 over 35mm area |
445 |
| PP-UVFS-12.7-6.35-ULLM8SHL | 12.7 | 6.35 | HR>99.9% @ 1030 nm | 0 | <λ/10 over CA |
90 |
| PP-UVFS-25.4-6.35-LLM186 | 25.4 | 6.35 | HRsp>99.9% @ 515 nm | 45 | <λ/10 over 10mm area |
195 |
| PP-UVFS-25.4-6.35-ULLM8SHL | 25.4 | 6.35 | HR>99.9% @ 1030 nm | 0 | <λ/6 over CA | 140 |
| PP-UVFS-50.8-9.52-ULLM5SHL (SCC) |
50.8 | 9.52 | HRs>99.95%& HRp>99.9% @ 1010 - 1050 nm | 45 | <λ/8 over CA | 505 |
| PP-UVFS-12.7-6.35-ULLM5SHL | 12.7 | 6.35 | HRs>99.95%& HRp>99.9% @ 1010- 1050 nm | 45 | <λ/8 over CA | 140 |
| PP-UVFS-25.4-6.35-UBBHR18 (no SCC) | 25.4 | 6.35 | HRs>99.9% @ 700 -
900 nm, HRp >99.5% @ 730 - 870 nm |
45 | <λ/6 over 15mm |
155 |
| PP-UVFS-12.7-6.35-UBBHR7 | 12.7 | 6.35 | HRs>99.95%& HRp>99.9%@ 980 - 1080 nm |
45 | <λ/10 over CA |
110 |
| PP-UVFS-25.4-6.35-UBBHR7 | 25.4 | 6.35 | HRs>99.95%& HRp>99.9%@ 980 - 1080 nm | 45 | <λ/6 over CA | 160 |
| PP-UVFS-25.4-6.35-ULLM13 | 25.4 | 6.35 | HRp>99.5%@ 327 - 363nm + HRs>99.75%@320 - 370 nm | 45 | <λ/10 over CA | 175 |
| PP-UVFS-25.4-6.35-ULLM11 | 25.4 | 6.35 | HRs>98.5%@235 - 280 nm & HRp>97.5%@241 - 271 nm | 45 | <λ/10 over 15 mm area | 200 |
| PP-UVFS-50.8-9.52-ULLM11 | 50.8 | 9.52 | HRs>98.5%@235 - 280 nm & HRp>97.5%@241 - 271 nm | 45 | <λ/8 over CA | 360 |
| PP-UVFS-12.7-6.35-LLM198 | 12.7 | 6.35 | Rs > 99.9% @500 - 540nm + 1000 -1070 nm, Rp > 99.8% @507 - 527nm, Rp > 99.9% @1005 - 1070nm | 45 | <λ/6 over 9mm area | 140 |
| PP-UVFS-25.4-6.35-LLM198 | 25.4 | 6.35 | Rs > 99.9% @500 -
540nm + 1000 - 1070 nm, Rp > 99.8% @507 - 527nm, Rp > 99.9% @1005 - 1070nm |
45 | <λ/6 over 20mm area | 140 |
| PP-UVFS-50.8-9.52-LLM198 | 50.8 | 9.52 | Rs > 99.9% @500 -
540nm + 1000 -1070 nm, Rp > 99.8% @507 - 527nm, Rp > 99.9% @1005 - 1070nm |
45 | <λ/6 over 40mm area | 380 |
| PP-UVFS-50.8-9.52-LLM121 | 50.8 | 9.52 | HRsp>99.9% @ 1030 nm + HRsp>99.9% @ 515 nm | 45 | <λ/8 over CA | 400 |
| PP-UVFS-25.4-6.35-LLM121 | 25.4 | 6.35 | HRsp>99.9% @ 1030 nm & HRsp>99.9% @ 515 nm | 45 | <λ/8 over CA | 160 |
| PP-UVFS-50.8-9.52-MW98 | 50.8 | 9.52 | HRa>99.3% @ 343 nm + HRa>99.5% @ 515 nm + HRa>99.8% @ 1030 nm | 45 | <λ/10 over 30 mm area | 540 |
| PP-UVFS-25.4-6.35-MW98 | 25.4 | 6.35 | HRa>99.3% @ 343 nm + HRa>99.5% @ 515 nm + HRa>99.8% @ 1030 nm | 45 | <λ/8 over 20 mm area |
290 |
| PP-UVFS-25.4-6.35-ULLM19 | 25.4 | 6.35 | HRa>99.9% @ 1030 nm | 0-45 | <λ/10 over 10mm area | 145 |
| PP-UVFS-25.4-6.35-ULLM31 | 25.4 | 6.35 | HRa>99.9% @ 515 nm | 0-45 | <λ/8 over 15mm area | 145 |
| PP-UVFS-50.8-9.52-ULLM19 (no SCC) | 50.8 | 9.52 | HRa>99.9% @ 1030 nm | 0-45 | <λ/8 over 20.5mm area | 390 |
| PP-UVFS-12.7-6.35-ULLM19 | 12.7 | 6.35 | HRa>99.9% @ 1030 nm | 0-45 | <λ/8 over 9mm area | 110 |
