秀逸の耐久性とパフォーマンスは環境モニタリング、ガス検知、セキュリティー用途において理想的なフィルターとして機能致します。

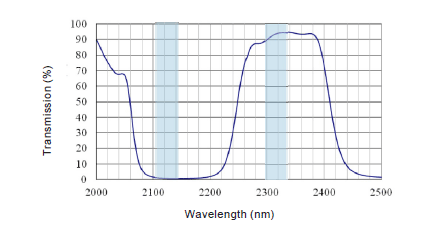

型番:10-720-6015-00
製品名称 |
|
WDM R2125/T2315 AOI 45deg Filter |
Passband Center Wavelength |
nm |
2315 +/- 20 |
3dB Transmission Bandwidth |
nm |
> 160 |
Angle of Incidence |
degree |
45 +/- 1 |
Pass Band Transmission |
% |
> 90 |
Transmission Cut On/Cut In Slope |
% |
< 2 |
Reflection Band Center Wavelength |
nm |
2125 +/- 20 |
3dB Reflection Bandwidth |
nm |
> 160 |
Reflection for Reflection Band |
% |
> 90 |
Reflection Cut On/Cut In Slope |
% |
< 2 |
Reflection of Backside AR Coating |
% |
< 0.2 |
Scratch / Dig |
|
40 / 20 |

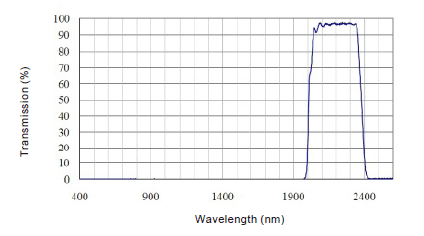

型番:10-720-6016-00
製品名称 |
|
T2220 IR Band Pass Filter |
Passband Center Wavelength |
nm |
2220 +/- 20 |
3dB Transmission Bandwidth |
nm |
> 380 |
3dB Transmission Bandwidth Tolerance |
% |
+/- 20 |
Angle of Incidence |
degree |
0 |
Pass Band Transmission |
% |
> 95 |
Reflection Band |
nm |
400 - 1900 & 2550 - 2600 |
Reflection Band Transmission |
nm |
< 0.1 |
Reflection of Backside AR Coating |
% |
< 0.2 |
Scratch / Dig |
|
40 / 20 |
