High average power above 100 W

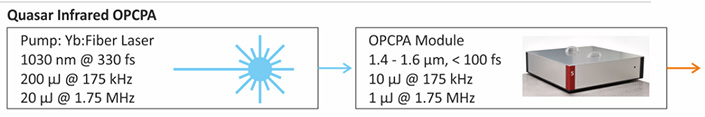

Quasar infrared OPCPAは、1.4 - 1.6 µmの波長レンジ、< 100 fs のパルス幅のモデルになります。White Dwarf OPCPAのプラットフォームがベースで、ポンプビームに1030 nm のファンダメンタルを使用しています。オプションは受動CEP安定化、波長可変、3 µmの中赤外光、波長変換(SHG・THG・DFG)がご利用いただけます。デュアル出力のスペシャルDFGモジュールを使用すれば、10 µmを超える領域の波長レンジまで実現可能です。
平均100 Wを超えるQuasar infrared OPCPAにつきましては、Supernova OPCPAを使用いたします。
Tunable femtosecond infrared laser for molecular spectroscopy and high harmonic generation
高パルスエネルギーPulse energy >100 μJ
超短パルスPulse duration <15 fs
高出力Output power >20 W
コンパクトサイズ80x80 cm
高い可変性Ask us about different Options
Wavelength tunable
White light (yellow) and amplified spectra at 700, 800 and 900 nm
Beam Quality
In 15 fs mode
Ultrashort pulses
Compression in 15 fs mode (autocorrelation)
Reliable performance
Stability of amplified output over 11 hour operation
High tuning efficiency
Pulse energy (black) and duration (red) vs. tuned wavelength at 1 mJ
Reliable compression
Almost bandwidth-limited (ACFL) pulses over tuning range
