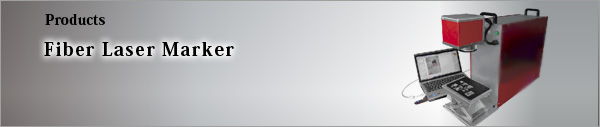

Fiber Laser Marker


Metals, Aluminum parts for automobile, Bearing, Drill, Tools, Saw, Joint, Battery, Resin, Headlight switch


Low price, Maintanance free, Long lifetime, Max power up to 20 W in Pulsed Mode,Guide laser, Air cooled, USB interface, Win XP and Vist and 7 capable, Multiple languages (English, Chinease, Korean, Japanese) capable, Various GUI, Varous file types (bmp, jpg, plt, dtf).


Wavelength 1064 nm
Average power [CW] 5, 10, 20, 30, ..... 200 W
[Pulse] 5, 10, 15, 20 W
Pulse width 60 - 90 ns, Rep rate 20 - 80 kHz tunable
Output power tunability 5 - 100 %, First pulse suppression
Scan area 100 square mm (F=100), 175 square mm (F=250), 250 square mm (F=360), 300 square mm (F=435)
Size W 260 mm x H 500mm x D 710 mm
Weight 25 kg (< 30 W)
Electrical 100 VAC, Power consumption 400 W


Compared to conventional solid state laser marker, this one is very compact and doesn't need a big driver and chiller. Also lifetime of pump laser is 100,000 hours. You don' worry about frequent maintenance. This accelerates replacement for solid state laser marker.

Interface Sample
Sample Sample

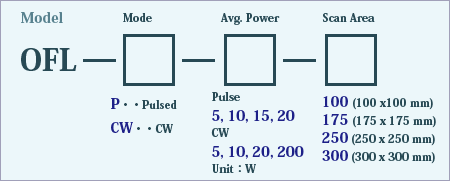

Ordering Information
